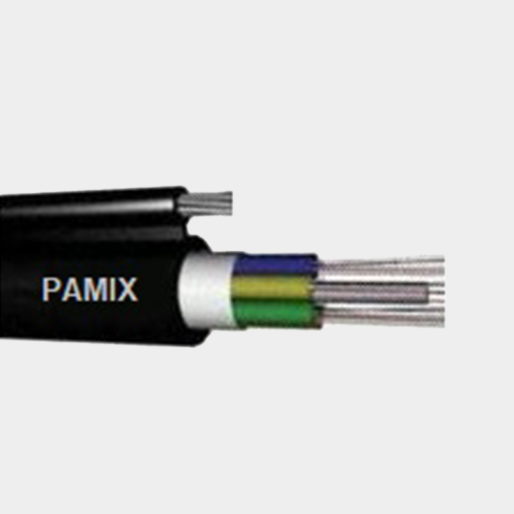

Aerial Cable A-MLT-S02
SM 0/125 (G.652 d)
| Attenuation at 1310 nm | Max. 0.36 dB/km |
|---|---|
| Attenuation at 1550 nm | Max. 0.22 dB/km |
Application
Aerial installation.
General Construction
Single outer sheath, Multi loose tube, Water blocking swellable material.
Cable Design
| Outer Sheath Material | MDPE & HDPE black according to ASTM D 1248 type II class C |
| Outer Sheath Thickness | 1.6 mm ± 0.1 |
| Loose Buffer Tube | PBT (Polybutylene terephthalate) |
| Filling Compound in Loose Tube | Thixotropic Jelly Compound |
| Tube Outer Diameter | 2.30 mm ± 0.07 |
| Tube Inner Diameter | 1.40 mm ± 0.07 |
| Central Strength Member | FRP |
| FRP Diameter | 2.50 mm ± 0.07 |
| Core Wrapping Tape | Water swellable tape |
| Auxiliary Strength Member | Aramid Yarn |
| Steel Rope Diameter | 7 × 0.9 mm |
| Ripcord | Yes, under outer sheath |
| Cable Outer Diameter | Depends on number of fibers and loose tubes, range from 12.0 to 13.0 mm ± 0.07 |
| Web Dimensions | 2.5 × 2.5 mm |
Performance and Standards
| No. | Cable Test | Standard | Requirements |
|---|---|---|---|
| 1 | Tensile Strength (installation) | IEC 60794-1 E1 | Min 4.000N Attenuation Change (Max 0.05 dB) |
| 2 | Tensile Strength (Operation) | IEC 60794-1 E1 | Min 2.500N Attenuation Change (Max 0.05 dB) |
| 3 | Cable Bend 20×D | IEC 60794-1-E11 | Attenuation Change (Max 0.05 dB) No Damage or breakage of the cable |
| 4 | Impact Test: 1 meter 50 N | IEC 60794-1-E4 | Attenuation Change (Max 0.05 dB) |
| 5 | Crush Strength: 200 N/cm | IEC 60794-1-E3 | Attenuation Change (Max 0.05 dB) |
| 6 | Torsion Test: 2 meter 10 kg ±180⁰ 10 cycles (20 times) | IEC 60794-1-E7 | Attenuation Change (Max 0.05 dB) |
| 7 | Flexing Test: 20×D, 30 cycles/min | IEC 60794-1-E8 | Attenuation Change (Max 0.05 dB) No Damage or breakage of the cable |
| 8 | Kink Test: 3 meter, formed into loop, Min 20×D | IEC 60794-1-E10 | Attenuation Change (Max 0.05 dB) |
| 9 | Repeated Bending Test: 10 cycles, 10 kg load, L > 1.5 meter, 20×D | IEC 60794-1-E6 | Attenuation Change (Max 0.1 dB) |
| 10 | Temperature Cycling (-40⁰C to +80⁰C) | IEC 60794-1-F1 | Transition from 20⁰C to -40⁰C: 4 hours Duration -40⁰C: 36 hours Transition from -40⁰C to 80⁰C: 4 hours Duration +80⁰C: 36 hours Duration of each cycle: 36 hours Number of cycles: 1 Attenuation Change (Max 0.5 dB) |
| 11 | Water penetration: 3 meter, 24 hours | IEC 60794-1-E5 | No Leakage at the end of the cable |
| 12 | Filing & Flooding compound flow | IEC 60794-1-E14 | No flow |
Cable Marking
PAMIX A-MLT-S02 Aerial Fiber Cable Steel wire <Product Number> <Number of fiber cores> SM 9/125 G.652 d <Lot No.> <meter count>
* Cable marking can be customized to meet customer needs.
Delivery
- 2000 meter cable length on wooden drum
- Cable weight depends on cable design
- 50 cm Wooden drum flange
Warranty
25 years performance warranty, refer to PAMIX Worldwide warranty terms.
Ordering Information
| Description | Art. Number |
|---|---|
| PAMIX A-MLT-S02 Aerial Multi Loose Tube 6×4 cores, SM G.652 d, single jacket, Steel Wire | 1012991 |
| PAMIX A-MLT-S02 Aerial Multi Loose Tube 3×12 cores, SM G.652 d, single jacket, Steel Wire | 1012992 |
| PAMIX A-MLT-S02 Aerial Multi Loose Tube 4×12 cores, SM G.652 d, single jacket, Steel Wire | 1012993 |
| PAMIX A-MLT-S02 Aerial Multi Loose Tube 6×12 cores, SM G.652 d, single jacket, Steel Wire | 1012994 |
| PAMIX A-MLT-S02 Aerial Multi Loose Tube 8×12 cores, SM G.652 d, single jacket, Steel Wire | 1012995 |
* Other cable designs can be customized based on customer request.
