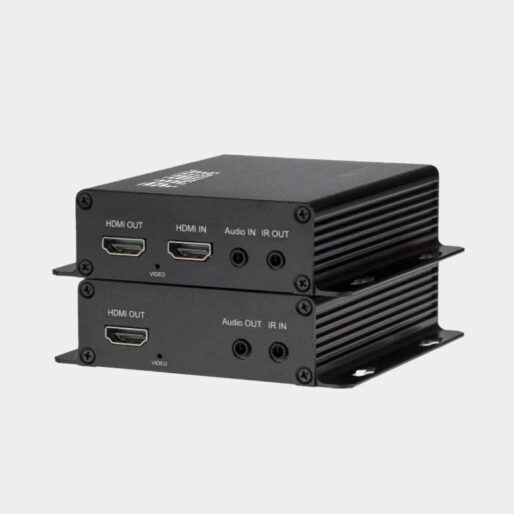

MCH-4100 HDMI TO FIBER CONVERTER
The PAMIX HDMI to fiber optic extender transmits HDMI video, audio, KVM & IR signals. It supports TCP/IP protocol for one-to-one or one-to-many configurations using an Ethernet switch. This product is widely used in many applications.
Main Features
- Support maximum resolution of 1920 x 1080 P @ 60Hz and lower.
- Support HDCP decryption engine for receiving video and audio.
- Supports mutual communication, allowing HDMI on one side and VGA on the other side.
- Supports EDID.
- Supports KVM (Mouse & Keyboard).
- Supports reverse IR.
- Supports one-to-one, one-to-many point transmission through fiber Ethernet switch up to 255 points.
- Independent analog audio.
- Automatic identification for display mode.
- Supports Single fiber & dual fiber over SM up to 120 Km.
- Built-in ESD protection circuit for high-quality videos.
- Wall mount installation.
- Plug and play, no need for configuration.
Specification
| Video | |
|---|---|
| Video Version | HDMI-D (full digital) |
| HDCP Protocol | 1.2 |
| Max Pixel Clock | 148.5 MHz |
| Resolution | 720(1440)x480i@59.94/60Hz, 720(1440)x576i@50Hz, 720x480p@59.94/60Hz, 720x576p@50Hz, 1280x720p@59.94/60Hz, 1280x720p@50Hz, 1920x1080i@59.94/60Hz, 1920x1080i@50Hz, 1920x1080p@23.98/24Hz, 1920x1080p@59.94/60Hz, 1920x1080p@50Hz |
| Effective Cable Length | ≤ 10 meters |
| Physical Interface | HDMI-I |
| Audio | |
| Sampling Frequency | 32K, 44.1K, 48K, 64K, 88.2K, 96K, 176.4K, 192K |
| Sampling Depth | 24 bit |
| Dynamic Bandwidth | 96dB |
| THD | -88dB |
| Audio In/Out Impedance | 600ῼ |
| Signal Level | VPP 3.3V |
| Interface | 3.5mm stereo audio socket |
| Signal Type | Analog stereo channel |
| KVM | |
| Version | 1.1 |
| Tx/Rx Interface | USB Female type A |
| IR | |
| Interface | 3.5mm |
| Frequency | 20 – 60 KHz |
| Signal Type | Digital signal |
| IR Direction | Reverse |
| Optical | |
| Interface | FC, SC, ST & SFP |
| Wavelength | 1310/1550 nm |
| Fiber Type | Single Mode, single fiber |
| Distance | Maximum 120km |
| Power | |
| Input voltage | 5V DC |
| Power Consumption | 3.0W per each transmitter or receiver |
| Power Interface | DC Socket 2.5Ø mm |
| Power Adapter | Input: 100 – 240 V ac 50/60 Hz, Output: 5V DC, 1A |
| Environmental | |
| Operating Temperature | -20°C to 60°C |
| Humidity | 5% – 95% noncondensing |
| Mechanical | |
| Dimension | 104 x 104 x 28 mm |
| Closure Material | Aluminum |
| Protection | IP40 |
One to One
One to Multi
Ordering Information
| Description | Article Number |
|---|---|
| PAMIX MCH-4100 HDMI to Single Mode Fiber Extender Pair, HDMI Video w/Local Out, KVM, 3.5mm audio, Revers IR. | 5101015-xx |
| PAMIX MCH-4100 HDMI to Single Mode Fiber Extender Pair, HDMI Video w/Local Out, 3.5mm audio, Revers IR. | 5101016-xx |
* xx denotes optical connector: SC = SC connector, FC= FC connector, ST= ST connector, SF=SFP transceiver
