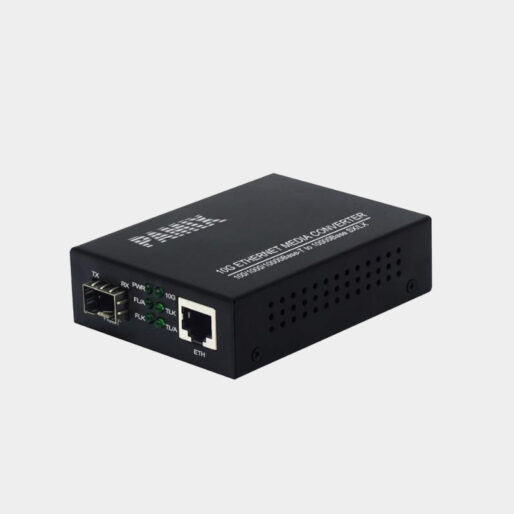

MCU-6110 Media Converter
PAMIX 10G Ethernet optical fiber media converter support 10G/5G/2.5G/1G/100Base-T auto sensing over RJ45 port and 10G Base-X SFP+ over fiber. 100M bps support both half & full duplex mode, while 10G, 5G, 2.5G & 1G bps support full duplex communication. It can carry out long distance data and video signal transmission. Both single-mode and multi-mode fiber types are supported. It support both desk, wall and rack installation. It’s stable, suitable for harsh environments, thanks to its double side ventilation design.
PAMIX MCU-6110 10G media converter supplied with empty SFP slot, this provide customer with high flexibility in selecting between single mode and multi-mode fiber and select transceiver with suitable transmission speed from 10M bps to 10G bps.
PAMIX 10G media converter was designed for high bandwidth network requirements.
Main Features
- 10G Base-X SFP+ MSA compliant
- Auto negotiable 10G/5G/2.5G/1G Base-T RJ45 interface with auto-MDI/MDI-X
- 100M support full & half duplex, 10G/5G/2.5G/1G support full duplex transmission mode
- 16K Jumbo frame
- Low power consumption and low heat generation cause stable long time, fan less
- Support both Single-Mode fiber & Multimode fiber
- Duplex fiber Single-Mode, Duplex fiber Multimode, Simplex fiber Single-Mode
- Hot plug and play
- 2KV surge protection and 4KV surge protection on DC power input
- IP30 protection
- Can be mounted on Desktop, Wall with optional kit or 2U Rack Chassis
- CE/FCC/ROHS 2.0 Compliance product
Specification
| I/O Interface | |
|---|---|
| Power | Adapter input voltage: AC 100-240 V, 50/60Hz |
| Adapter output voltage | 5V, Socket Ø2.5mm |
| Media Converter Input | DC 5-12V dc, 2A |
| Power Consumption | ≤ 4 Watt at full load |
| Ethernet | RJ45 Port 10G/5G/2.5G/1G/100M bps (100 meter maximum) |
| SFP+ | 10G/5G/2.5G/1G/100M bps (SM OS1/OS2 ≤ 120km, MM M1/OM2/OM3/OM4 ≤ 550 meter) |
| Performance | |
| Back Bandwidth | 20G bps |
| Jumbo Frame | 16K Bytes |
| Transfer Mode | Store and Forward |
| Time Delay | < 5µs |
| Flow Control | Supported |
| Standard | |
| Network Protocol | IEEE802.3u (100Base-TX/FX), IEEE 802.3ab (1000Base-TX), IEEE 802.3bz (2.5G/5G Base-TX), IEEE 802.2an (10G Base-TX), IEEE 802.2ae (10G Base-TX), IEEE802.3x (Flow control) |
| Optical Characteristics | Multimode: 850nm, Single mode: 1310/1550nm |
| EMC Protection | Power Port: IEC 61000-4-5 Level 4, 4K, Copper Port: IEC 61000-4-5 Level 3, 2K, ESD: IEC 61000-4-2 Level 4, 8KV/15KV |
| Environment | |
| Working Temperature | -10~55°C |
| Storage Temperature | -40~85°C |
| Working Humidity | 5%~90%, non-condensing |
| Mechanical | |
| Product Size | 94x70x26mm |
| Enclosure | Metal IP30 |
| Indicators | |
| LED Indicators | PWR (Power indicator), 10G Speed, FX (Optical link is connected), FL/A (Optical link in active), TL/A (Twisted pairs link is connected & active) |
Ordering Information
| Description | Model | Article Number |
|---|---|---|
| PAMIX 10G Media Converter 10G/5G/2.5G/1G/100M, SFP Slot | MCU-6110 | 5101028 |
| PAMIX SFP 10G Multi Mode 850nm LCD 300m range | S-MD10-03I-85-xx | 5101129 |
| PAMIX SFP 10G Single Mode 1310nm LCD 10km range | S-SD10-10I-13-xx | 5101130 |
| PAMIX SFP 10G Single Mode TX1310/RX1550nm LC 20km range | S-SB10-20I-23-xx | 5101135 |
| PAMIX SFP 10G Single Mode TX1550/RX1310nm LC 20km range | S-SB10-20I-32-xx | 5101136 |
| Wall mount installation kit | 5101099 |
*Optional more distances available 40/60/80/120km
