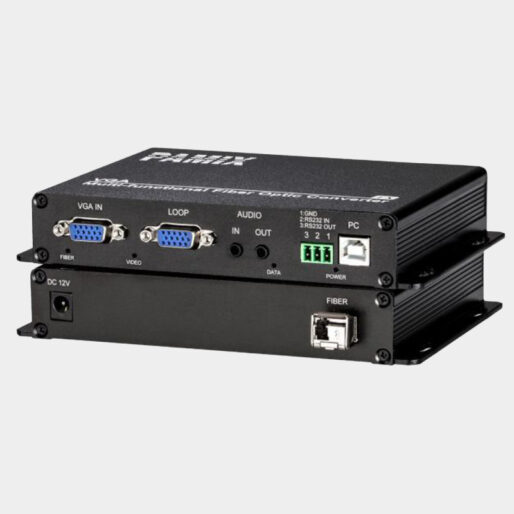

MCV-8150 VGA to Fiber Converter
PAMIX VGA to fiber converter is a multi-function media converter, it support VGA video channel with local video loop, USB (Keyboard & mouse) channel, audio bidirectional channel, RS232/RS485 bidirectional channel, IR reverse channel. It support resolution up to 1920x1080P @ 60Hz and downward compatible. PAMIX VGA media converter was in operation for long time proof its stability and compatibility with most manufacturers. It’s ideal for high-performance computer remote interactive operations.
Main Features
- Support VGA video with local loop output.
- 20km distance on Single Mode, single fiber core.
- Time-Base Corrector (TBC).
- 4:4:4 Chroma Sampling.
- Automatic Phase Detection (APD).
- Automatic Position Calibration (APC).
- Automatic Gain Calibration (AGC).
- Audio Emulation.
- Delay < 1 ms.
Specification
| Video | |
|---|---|
| Resolution | 480i/p, 576i/p, 720p25/30/50/60, 1080i50/60, 1080p24/25/30/50/60 |
| Pixel Clock | 148.5MHz maximum |
| Interface | HD-15 |
| Cable Length | 10 meter |
| Audio | |
| Sampling Frequency | 48K |
| Sampling Depth | 24 bit |
| Dynamic Bandwidth | 96 dB |
| Total Harmonic Distortion | -88 dB |
| Signal to Noise Ratio | 96 dB |
| In/Out Impedance | 600ῼ |
| Signal Level | VPP 3.5V |
| Interface | 3.5mm audio socket |
| Signal Type | Analogue stereo channel |
| USB | |
| Version | 1.1 |
| Interface (Tx/Rx) | USB Female |
| Optical | |
| Interface | LC (SFP module) |
| Fiber Type | Single Mode, single fiber |
| Distance | 20km |
| Wavelength | 1330nm / 1550nm |
| RS232 | |
| Description | 3 wire system |
| Transition Mode | Full duplex |
| Baud Rate | 256KHz |
| Data Bit | 8 digits |
| Interface | 3-pin phoenix terminal |
| RS485 | |
| Description | 2 wire system |
| Transition Mode | Half duplex |
| Error Rate | 10⁻⁹ |
| Bit Rate | 0 – 400K bps |
| Interface | 3-pin phoenix terminal |
| Contact Closure | |
| Electrical Input Parameters | Dry node, not charged (short or disconnected) |
| Electrical Output Parameters | Dry node, not charged (short or disconnected) |
| Output Relay Maximum Switching Voltage | 240VAC/30VDC |
| Output Relay Maximum Switching Current | 120VAC/0.5A ,240VAC/0.25A ,30VDC/1A ,6VDC/5A |
| Maximum Output Power (Relay) | 30W |
| Power | |
| Input Voltage | 12V DC |
| Power Consumption | < 1.5 Watt |
| Environmental | |
| Operating Temperature | -20°C – 70°C |
| Humidity | 0% – 95% noncondensing |
| Dimensions & Weight | |
| Device (Single) | 167.0mm width, 113.0mm depth, 28mm height, 0.70kg |
| Packing (Pair) | 345.0mm width, 252.0mm depth, 54.0mm height, 1.10kg |
Application
Ordering Information
| Description | Article Number |
|---|---|
| PAMIX MCV-8150 VGA video to Single Mode Fiber Converter Pair, VGA channel, Audio channel 3.5mm BIDI, RS232/RS485 channel BIDI, LC optical interface, 20KM | 5101050 |
| PAMIX MCV-8150 VGA video to Single Mode Fiber Converter Pair, VGA channel, Audio channel 3.5mm BIDI, RS232/RS485 channel BIDI, USB 1.1 channel, LC optical interface, 20KM | 5101051 |
