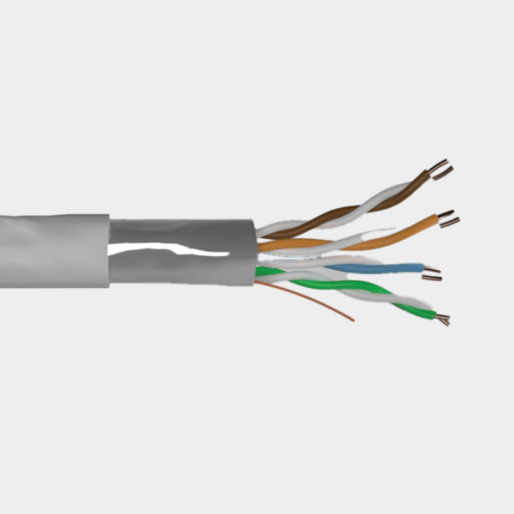

PAMIX 100 Cat 5e FUTP
Applications
Data cable for horizontal cables and Building backbones. Suitable for transmission voice, video and data. Applicable for all ICT network applications 1G bit/s up to 100 MHz frequency.
General Construction
Cat.5e data cable – Compliant with the standards ISO/IEC 11801, IEC 61156-6, EN 50173-1 and EN 50288-2-2. Compatible with all current connecting hardware in accordance with EN 50173 and ISO/IEC 11801.
| Outer Jacket material | FR-PVC (complies RoHS). |
| Outer Jacket material thickness | 0.55mm ±0.05 (Average) |
| Cable Diameter | 5.8mm ±0.4 |
| Conductor material | SOLID-Bare Copper |
| Conductor size | 24 AWG (0.5mm ±0.01) |
| Insulation Material | HDPE |
| Insulation Material Diameter | 0.95 ±0.05 |
| Color code | According to TIA/EIA 568-B |
| Rip cord | Yes |
| Drain wire | Yes |
| Total Number Conductors | 8 |
Sheath Printing
PAMIX 100 CAT 5e / Class D F/UTP 4P AWG24 FR/PVC <Product No.> <Patch No.> <meter numbering>m
Electrical Characteristics at 20°C
- Impedance (Ω): 100 ±15 @ 1.0 – 250.0 MHz
- Delay Skew (ns/100m): ≤ 45 @ 1.0 – 100.0 MHz
- DC Resistance: 78 Ω/km @ 20°C
- DC Conductor Resistance Unbalance (%): 2.0
Standards
Generic cabling and cabling components standards
- ISO/IEC 11801/ ISO/IEC 11801
- IEC 61156-5
- EN 50173-1/4
- EN 50288-2-1
- TIA-568-C.2
- IEEE 802.3
Standards for flammability, halogen acidity, and smoke performance
- IEC 60332-1-1:2015 (Ed. 1.1) / IEC 60332-1-2:2015 (Ed. 1.1)
Ordering Information
| Cable Description | Sheath Color | Article No. | |
| – | Data Cable 100 Cat 5e / Class D F/UTP FR/PVC 4P | Blue | 1001021 |
| – | Data Cable 100 Cat 5e / Class D F/UTP FR/PVC 4P | Red | 1001022 |
| – | Data Cable 100 Cat 5e / Class D F/UTP FR/PVC 4P | Grey | 1001023 |
| – | Data Cable 100 Cat 5e / Class D F/UTP FR/PVC 4P | Green | 1001024 |
| – | Data Cable 100 Cat 5e / Class D F/UTP FR/PVC 4P | Yellow | 1001025 |
| – | Data Cable 100 Cat 5e / Class D F/UTP FR/PVC 4P | Orange | 1001026 |
