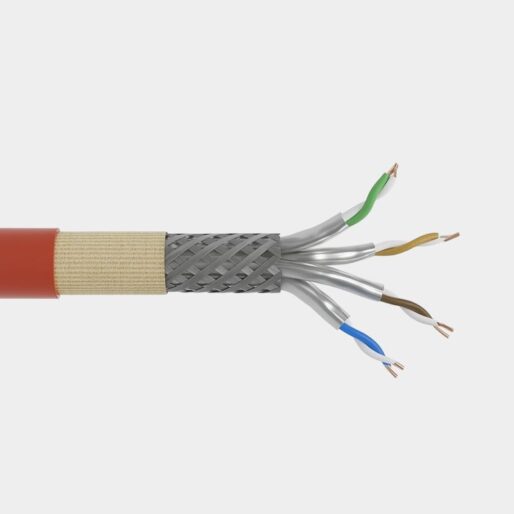

PAMIX 650 CAT7 SFTP PH120
Applications
Fire resistance structured premises cabling for the transmission of digital and analogue voice, video, and data signals. It’s specially designed for high-security areas and places where assets and people must be protected against fire. Suitable for all ICT network applications up to class F applications (600 MHz). Support Power over Ethernet.
General Construction
Cat.7 data cable – exceeds the requirements of ISO/IEC 11801, IEC 61156-5, EN 50173, and EN 50288-4-1. Excellent shielding effect due to individually screened pairs and overall braid screening.
| Outer Jacket Material | LSZH |
| Fire Barrier | Glass tape |
| Insulation | Polyolefin with mica glass for fire resistance |
| Fire Resistance | PH120 EN 50200 (120min @ 840°C) |
| Cable Diameter | 10.0mm ±0.5 |
| Conductor Material | Solid annealed bare copper |
| Conductor Size | 22 AWG / 1 |
| Insulation Material | Foam PE |
| Color Code | According to TIA/EIA 568-B |
| Drain Wire | Tinned Copper 0.4mm AWG26 |
| Inner Screening Material | Al/Mylar |
| Outer Screening Material (Braid) | Tinned Copper |
| Braid Cover % | 53.3% |
| Total Number Conductors | 8 |
| Application | Indoor |
| Operating Temperature | -20°C to 60°C |
| Bending Radius | 8 x D |
Sheath Printing
PAMIX 650 Cat7 / Class F S/FTP 4P AWG22 LSZH PH120 EN50200 <Product No.> <meter numbering>m <Patch No.>.
Electrical Characteristics at 20°C
- Impedance (Ω) 100 ±5 @ 1.0 – 100.0 MHz
- Propagation Velocity 78%
- Unbalanced Capacitance 1200 pF/km
- DC Resistance ≤ 60 Ω/km @ 20°C
- DC Conductor Resistance Unbalance (%) 2.0 max
- Insulation Resistance ≥ 5000 MΩ·km
Standards
Generic cabling and cabling components standards – Category 7 cable requirements
- ISO/IEC 11801-1:2017 (Ed. 1.0) / ISO/IEC 11801-2:2017 (Ed. 1.0)
- IEC 61156-5:2020 (Ed. 3.0)
- EN 50173-1:2018 / EN 50173-2:2018
- EN 50288-4-1:2013
Standards for flammability, halogen acidity, and smoke performance
- IEC 60332-1-1:2015 (Ed. 1.1) / IEC 60332-1-2:2015 (Ed. 1.1)
- IEC 60754-2:2019 (Ed. 2.1)
- IEC 61034-1:2019 (Ed. 3.2) / IEC 61034-2:2019 (Ed. 3.2)
- EN 50200 PH120
Ordering Information
| Cable Description | Sheath Color | Article No. | |
| – | Data Cable 650 Cat 7 / Class F S/FTP LSZH 4P PH120 | Red | 1001225 |
| – | Data Cable 650 Cat 7 / Class F S/FTP LSZH 4P PH120 | Orange | 1001226 |
