PAMIX RJ45 keystone – KS-C6AC
Applications
PAMIX KS-C6AC is a CAT6A RJ-45 female connector developed and designed to have colored stickers added to the RJ45 female connector for better and easy cable management. Adding colored stickers to the RJ45 female connector enables installers and IT network managers to distinguish between those used for different systems from both sides: work area and rack patch panel. It provides excellent voice, data, and video signal transmission. It supports 10G Ethernet application, frequency up to 500 MHz. Its 360° shielding minimizes EMI/RF noise and alien crosstalk. It supports all POE standards up to 4PPOE.
General Construction
Solid Zinc die-casting housing, spring contacts are Phosphor bronze plated with gold for excellent stable performance. Colored stickers are fixed on connectors’ front through two special holes. Compatible with standard data cable from AWG26 to AWG22. Its 180° housing wings make termination easy and fast.
Technical Information
- Cat 6A 10G 500MHz class EA performance.
- RJ45-Jack, 8P8C connector.
- Snap-in connector fixing.

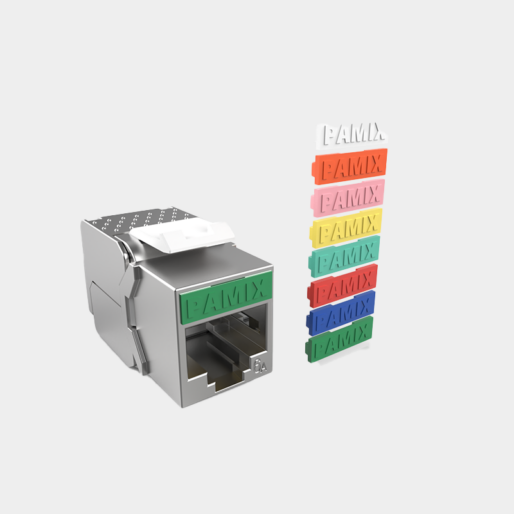

- 8 different keystone colored stickers.
- Compliance with the component standard IEC 60603-7-51.
- Support PoE+ & 4PPoE applications (IEEE 802.3af, 802.3at, 802.3bt).
- Solid cable termination 1/22AWG (0.65mm) to 1/24AWG (0.45mm).
- Stranded cable termination 7/22AWG (0.76mm) to 7/26AWG (0.48mm).
- 5.0mm – 8.5mm cable OD.
- Support EIA/TIA 568 A & B termination standards and label color code.
- Tool-less jack module.
- Tool-free mounting in patch panels.
- Movable wings’ necks ensure 360° fully cable shielding locked by plastic tie.
- Re-usable in case of bad termination or cable damage.
- 19.70 g weight.
- Dimensions: 19.96 X 16.06 X 36.65 mm (H X W X D).
- Operating temperature: -10 to 60 °C.
- Storage temperature: -40 to 70 °C.
- 1.2MM UL94V0 PCB.
- Fireproof UL94V0 IDC body.
- Snap-in force < 30N.
Standards
Meeting connector standards IEC 60603-7-51, IEC 60512-99-002 and cable standards ISO/IEC 11801, EN 50173-1, TIA/EIA 568-x for Class EA
Ordering Information
| Description | Article Number |
|---|---|
| KS-C6AC RJ-45 Female Module Cat 6A, shielded, colored | 1005198 |
| White color sticker | 1005200 |
| Green color sticker | 1005201 |
| Yellow color sticker | 1005202 |
| Red color sticker | 1005203 |
| Blue color sticker | 1005204 |
| Orange color sticker | 1005205 |
| Turquoise color sticker | 1005206 |
| Pink color sticker | 1005207 |
