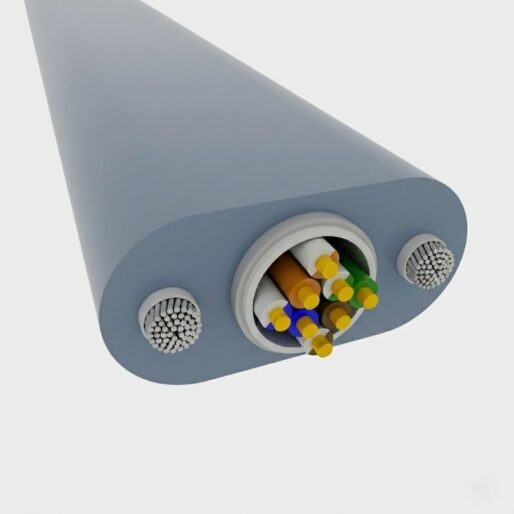

SBM510 Elevator Flat Data Cable Cat 6A
Applications
PAMIX flat elevator cable is specially designed for elevators. It’s manufactured for transmission of voice, video and data signals while the elevator room is travelling. PAMIX elevator flat data cable is standardized on Cat 6A S/FTP cable construction, supports 500 MHz frequency (10Gbps), and supports Power over Ethernet (PoE) devices installed inside the elevator cabin. Thanks to PAMIX flex design and two steel supporting members.
General Construction
PAMIX Cat.6A elevator data cable compliant with ISO/IEC 11801, IEC 61156-5, EN 50173-1 and EN 50288-10-1 standards. Good shielding effect due to individually screened pairs and overall tinned copper braid. Compatible with all current connecting hardware according to EN 50173 and ISO/IEC 11801.
| Outer Jacket material | PVC (Elastic material for elevator) |
| Data Cable Outer Jacket | LSZH, Green color RAL 6027, EN 50290-2-27 |
| Data Cable Pairs | 1 X 4 Twisted Pairs |
| Cable Diameter | Ø5.80mm, 70°C |
| Conductor material | Stranded Tinned Copper |
| Conductor size | Ø 26/7 AWG |
| Insulation Material | Skin-foam-skin PE |
| Color code | According to TIA/EIA 568-B (Orange-white, Orange) (Green-white, Green) (Blue-white, Blue) (Brown-white, Brown) |
| Inner Screening Material | Al/PET foil |
| Outer Screening Material | 65% coverage, Tinned Copper braid wires |
| Support members | 2 Galvanized steel ropes, 1.6mm each |
| Outer Jacket Color | Grey |
| Overall Dimension | 16.5±1 mm x 8.4±0.6 mm |
| Operating Temperature | -15 to 75 °C |
Sheath Printing
PAMIX SBM510 ELEVATOR CABLE 1 X CAT6A / Class EA S/FTP 4P AWG26 <Product No.> <meter numbering>m <Patch No.>
Electrical Characteristics at 20°C
- Impedance (Ω): 100 ±5 @ 100 MHz
- Mutual Capacitance: 48 pF/m nominal
- Delay Skew: ≤ 25 ns/100m
- Propagation delay (NVP): 78-80%
- Unbalanced to ground capacitance: 1600 pF/100m max
- DC Resistance: 135 Ω/km two way @ 20°C max
- Characteristic Impedance: 100 ±5 Ω @ 100 C°
- DC Conductor Resistance Unbalance (%): 2.0 max
- Testing Voltage: 1000 V
- Operating Voltage: 72 V max
- Insulation Resistance: 5000 MΩ/m
Mechanical Characteristics
- Working Speed: 4.0 m/s max
- Free Suspended Length: 48.0 m max
- Travelling Length: 80.0 m max
- Supporting Members: 2 steel ropes
- Tensile Strength: ≥ 100 N maximum
- Sheath Elongation: ≥ 300%
- Rated Voltage: 300V
Standards
Generic cabling and cabling components standards
- ISO/IEC 11801-1:2017 (Ed. 1.0) / ISO/IEC 11801-2:2017 (Ed. 1.0)
- IEC 61156-5:2012 (Ed. 2.1)
- EN 50173-1:2018 / EN 50173-2:2018
- EN 50288-4-1:2013
- TIA-568-2-D:2018
Standards for flammability, halogen acidity, and smoke performance
- IEC 60332-1-2
- EN 50214
LVD Low Voltage Directive 2014/35/EC
RoHS EC Directive 2015/863/EU
Ordering Information
| Cable Description | Article No. | |
| – | SBM510 Elevator Flat Data Cable 1 x Cat 6A / Class EA S/FTP | 4601161 |
