Universal Optical Fiber Cable
| Fiber Type | MM OM3 | MM OM4 | SM G.652D |
|---|---|---|---|
| Attenuation at 850 nm | ≤ 3.5 dB/km | ≤ 3.0 dB/km | |
| Attenuation at 1300 nm | ≤ 1.5 dB/km | ≤ 1.5 dB/km | |
| Attenuation at 1310/1550/1625 nm | ≤ 0.4 dB/km |
Application
Suitable for indoor and outdoor application, laying on cable trays and ducts. It can be used as LAN back bones in multi dwelling building’s riser to connect IDFs to MDF, connecting buildings in compass to main data center.

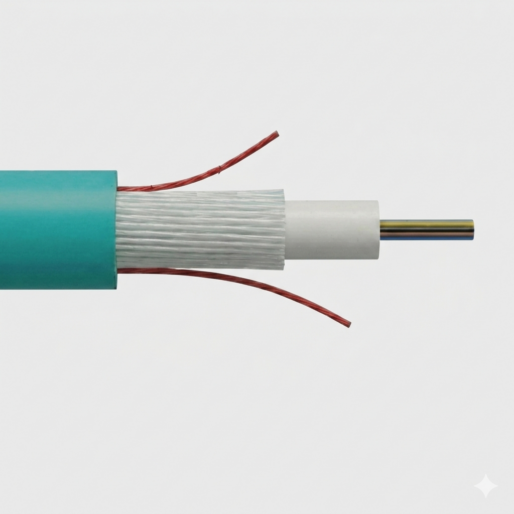

General Construction
Non-metallic, central loose tube, jell free, glass yarn for protection against rodents’ attack, water blocking yarn, high crush resistance for higher reliability. Flame retardant LSZH outer jacket. Rip cords for easier cable stripping.
| Cable Design | |||
|---|---|---|---|
| Cable Type | Universal | ||
| Fiber Type | SM/OM3/OM4 | ||
| Outer Sheath Material | FRNC/LSZH | ||
| Color | OM3 Turquoise (Aqua) |
OM4 Violet |
SM G.652D Yellow |
| Fiber cores | Maximum 24 fibers | ||
| Number Of Loose Tubes | 1 | ||
| Loose Buffer Tube | PBT (Polybutylene terephthalate) | ||
| Loose Tube | 3.0 ± 0.07mm | ||
| Armoring | Glass Yarn | ||
| Cable Outer Diameter | 7.6 mm | ||
| Tensile Strength (Long/Short) | 3000 / 1000 N | ||
| Crush Load (Long/Short) | 5000 / 1000 N | ||
| Bending Radius | 15D | ||
| Operating temperature | -25 – +60 °C | ||
Fiber Identification Colors
All fiber cores are individually identified by colored quoting up to 12 colors according to EIA/TIA 598
| Blue | Orange | Green | Brown | Grey | White | Red | Black | Yellow | Violet | Pink | Aqua |
| Optical Characteristics | ||
|---|---|---|
| Multi-Mode OM3/OM4 | ||
| OM3 | OM4 | |
| Cladding diameter | 125 ± 0.1 µm | 125 ± 0.1 µm |
| Core diameter | 50 ± 2.5 µm | 50 ± 2.5 µm |
| Coating diameter | 242 ± 5 µm | |
| Numerical Aperture (NA) | 0.200 ± 0.015 | |
| OFL Bandwidth | ||
| 850nm | ≥ 1500 | ≥ 3500 |
| 1300nm | ≥ 500 | ≥ 500 |
|
Optical Characteristics Single-Mode OS2 E9/125 G.652d |
||
| Cladding diameter | 125 ± 0.7 µm | |
| Core diameter | 9 µm | |
| Coating diameter | 242 ± 7 µm | |
| Zero Dispersion Wavelength | 1300-1324 nm | |
| Zero Dispersion Slope | ≤ 0.092 ps/(nm².km) | |
| Mode Field Diameter @ 1310nm | 9.2 ± 0.4 µm | |
| Mode Field Diameter @ 1550nm | 10.4 ± 0.8 µm | |
| Cable Cut-Off Wavelength, λ cc | ≤ 1260 nm | |
Cable Marking
PAMIX USLT-10 Universal Optical Fiber Cable Armored <Product Number>
<Number of fiber cores> <SM G.652D>/ MM <OM3/OM4>
<Lot No.> <meter count>
Standards
The cable is manufactured and tested according to following industry standards
| Tensile Loading Test | IEC 60794-1-2 E1 |
| Crush Test | IEC 60794-1-2 E3 |
| Impact Resistance Test | IEC 60794-1-2 E4 |
| Repeated Pending test | IEC 60794-1-2 E6 |
| Torsion/Twist Test | IEC 60794-1-2 E7 |
| Temperature Cycling Test | IEC 60794-1-2 F1 |
| Water Penetration Test | IEC 60794-1-2 F5B |
Ordering Information
| Description | Art. Number |
|---|---|
| PAMIX USLT-10 Universal Optical fiber MM OM3 Cable 4 cores | 1012900 |
| PAMIX USLT-10 Universal Optical fiber MM OM3 Cable 6 cores | 1012901 |
| PAMIX USLT-10 Universal Optical fiber MM OM3 Cable 8 cores | 1012902 |
| PAMIX USLT-10 Universal Optical fiber MM OM3 Cable 12 cores | 1012903 |
| PAMIX USLT-10 Universal Optical fiber MM OM3 Cable 24 cores | 1012904 |
| PAMIX USLT-10 Universal Optical fiber MM OM4 Cable 4 cores | 1012910 |
| PAMIX USLT-10 Universal Optical fiber MM OM4 Cable 6 cores | 1012911 |
| PAMIX USLT-10 Universal Optical fiber MM OM4 Cable 8 cores | 1012912 |
| PAMIX USLT-10 Universal Optical fiber MM OM4 Cable 12 cores | 1012913 |
| PAMIX USLT-10 Universal Optical fiber MM OM4 Cable 24 cores | 1012914 |
| PAMIX USLT-10 Universal Optical fiber SM G.652D Cable 4 cores | 1012930 |
| PAMIX USLT-10 Universal Optical fiber SM G.652D Cable 6 cores | 1012931 |
| PAMIX USLT-10 Universal Optical fiber SM G.652D Cable 8 cores | 1012932 |
| PAMIX USLT-10 Universal Optical fiber SM G.652D Cable 12 cores | 1012933 |
| PAMIX USLT-10 Universal Optical fiber SM G.652D Cable 24 cores | 1012934 |
