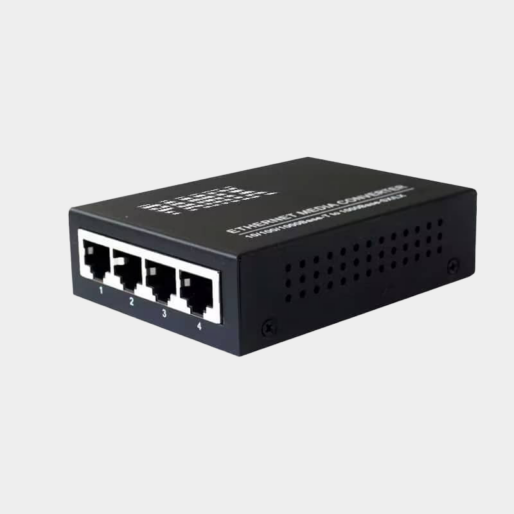

MCI-1140 Media Converter
PAMIX optical fiber media converter can efficiently do conversion between 10/100/1000M Ethernet RJ45 port and fiber. It can carry out long distance data and video signal transmission. It’s stable, suitable for harsh environments, thanks to its double side ventilation design.
Main Features
- Auto negotiable 10/100/1000M network speed.
- Auto negotiable full-duplex and half-duplex transmission mode according to IEEE 802.3x flow control.
- 1M Buffer, 2K MAC Address.
- Support 16 Groups of VLANs.
- Working mode indicator light.
- Support both Single-Mode & Multimode fiber.
- Simplex & Duplex connector.
- Hot plug and play.
- IP30 protection.
- Up to 80Km distance over optical fiber depends on model.
Specification
| I/O Interface | |
|---|---|
| Power Adapter Input Voltage | AC 100-240 V, 50/60Hz (Optional -48V dc) |
| Adapter Output Voltage | 5V dc, Socket Ø2.5mm |
| Media Converter Input | DC 5-12V |
| Power Consumption | ≤ 3 Watt |
| Ethernet | 4 RJ45 Ports 10/100/1000M (≤100 meter) |
| Fiber Port | 1 SCD or 1SC Port 1.25G (depend on model) |
| Performance | |
| Buffer Space | 1M bit |
| Mac Address | 2000 |
| Transfer Mode | Store and Forward |
| Flow Control | Supported |
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x |
| Standard | |
| Network Protocol | IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX/FX), IEEE 802.3ab （1000Base-TX）, IEEE 802.3z （1000Base-FX）, IEEE802.3x (Flow control) |
| Optical Characteristics | Single mode: 1310/1550nm, Multimode: 850/1300nm |
| Environment | |
| Working Temperature | -20~60°C |
| Storage Temperature | -40~70°C |
| Working Humidity | 5%~95%, non-condensing |
| Mechanical | |
| Product Size | 95*70*26mm |
| Enclosure | Metal IP30 |
| Indicators | |
| LED Indicators | PWR (Power indicator), Fx (Optical link is connected), Tx (Twisted pairs link is connected) |
Ordering Information
| Description | Article Number |
|---|---|
| PAMIX MCI-1140-E Media Converter 4 RJ45 10/100/1000M Ports, Dual Fiber, SCD 1000M Multimode, 850nm, 550 meter | 5101280 |
| PAMIX MCI-1140-E Media Converter 4 RJ45 10/100/1000M Ports, Dual Fiber, SCD 1000M Single Mode, 1310nm, 20km | 5101281 |
| PAMIX MCI-1140-E Media Converter 4 RJ45 10/100/1000M Ports, Single Fiber, SC 1000M Single Mode, 1310TX/1550RX, 20km | 5101282-A |
| PAMIX MCI-1140-E Media Converter 4 RJ45 10/100/1000M Ports, Single Fiber, SC 1000M Single Mode, 1550TX/1310RX, 20km | 5101282-B |
| PAMIX MCI-1140-E Media Converter 4 RJ45 10/100/1000M Ports, Single Fiber, SC 1000M Single Mode, 20km Pair (A & B) | 5101282-AB |
*Optional more distances available 40/60/80km
*Optional other connectors are available on special request
